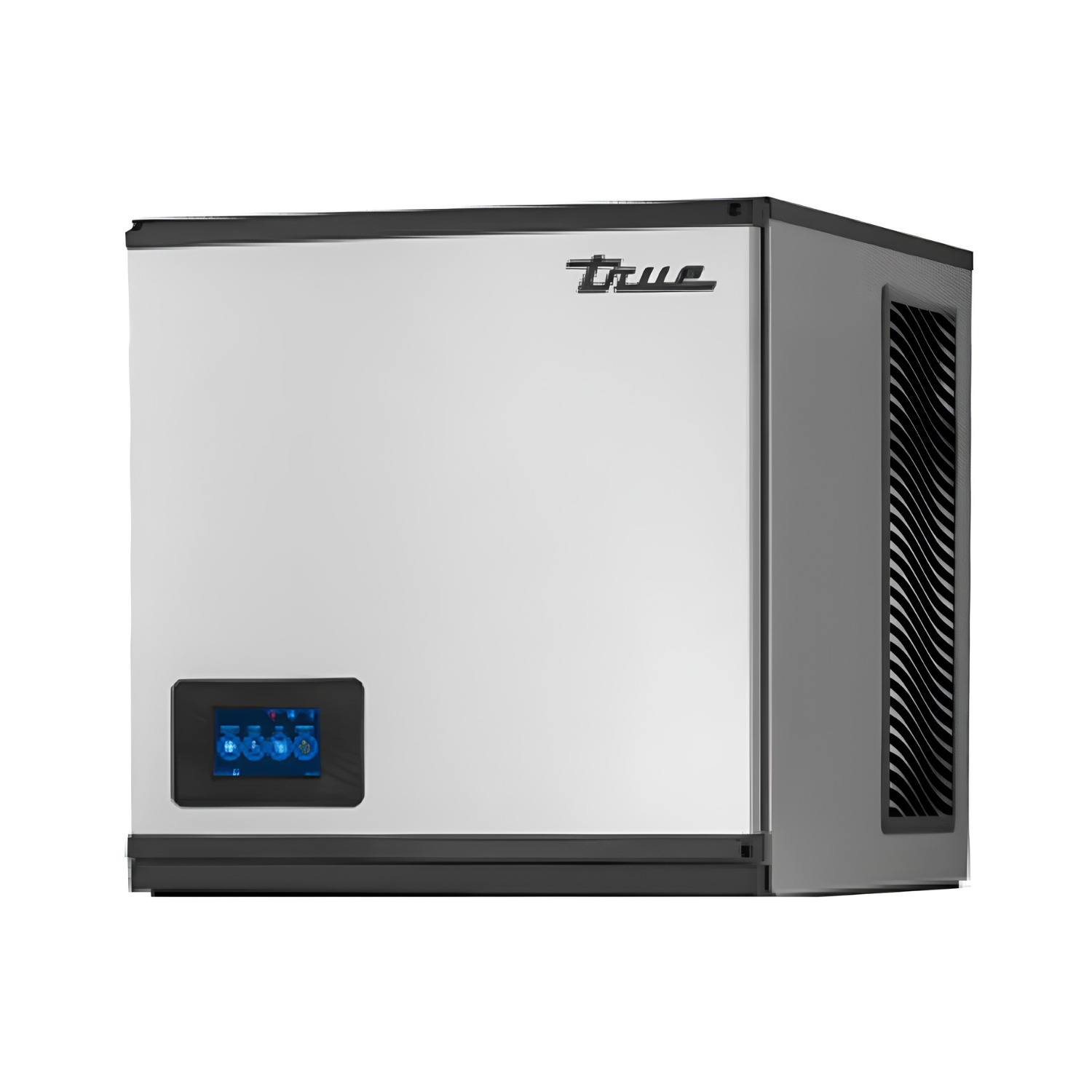

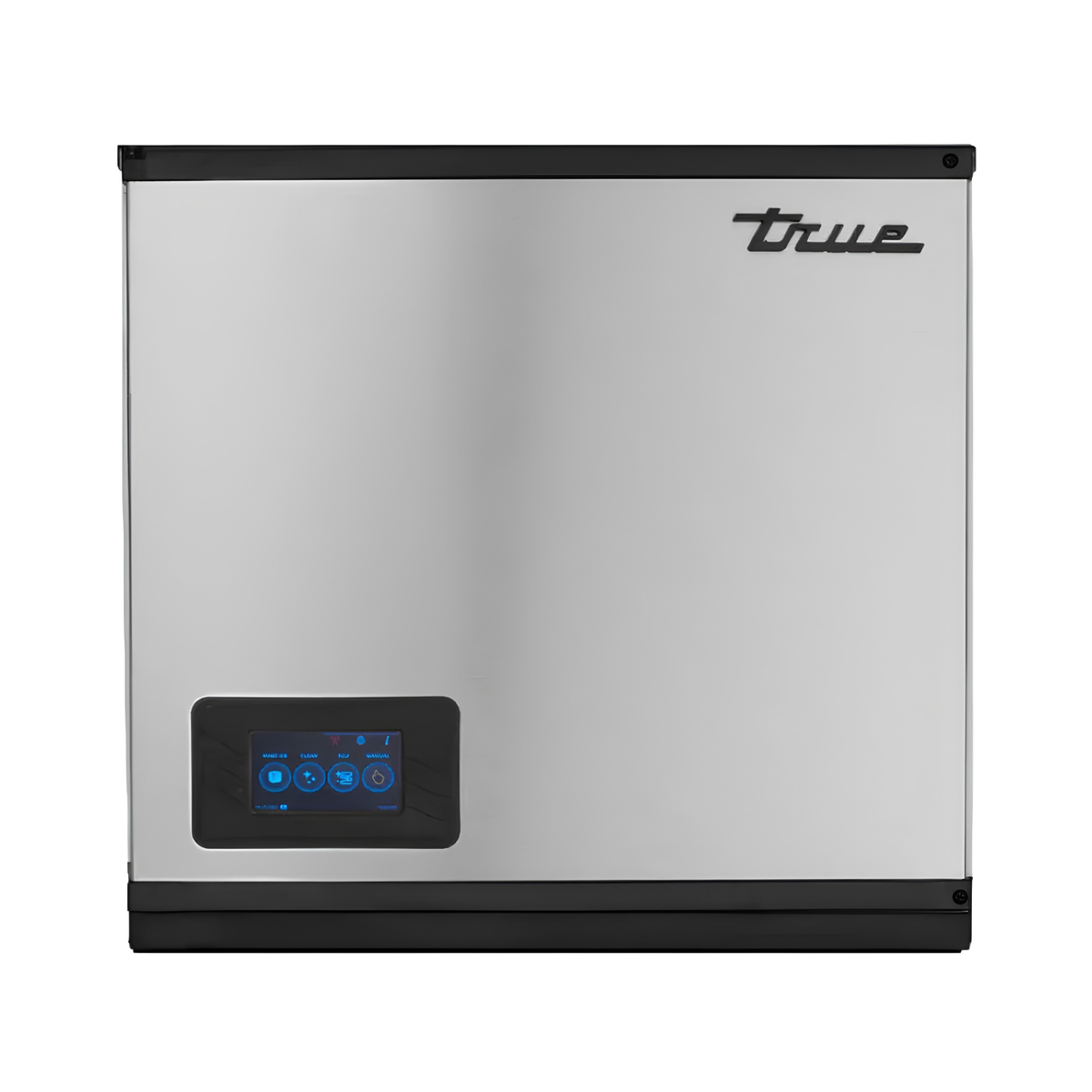

TCIM-422 22" Modular Cubed Ice Machine - 443 Lbs.
$6,326.62 CAD
This modular cubed ice machine produces up to 443 lbs. of ice in 24 hours, making it ideal for high-volume restaurants, hotels, bars, and other commercial foodservice operations. Its durable stainless steel design and programmable ice production provide reliable performance for businesses with demanding ice needs.
Standard Features
- Produces up to 443 lbs. of ice in 24 hours
- Makes half-size, full-size, and large-size cubes
- Durable stainless steel exterior for easy cleaning
- Environmentally friendly R290 refrigeration system
- Removable air filter with RCU technology for easier maintenance
- Programmable ice production for flexible operation
-
Optional True Zone UV purification system available
| Model | TCIM-422 |
| Length | 22 Inches |
| Width | 24 Inches |
| Height | 22 Inches |
| 24 Hour Ice Yield | 443 Lbs. |
| Ice Types | Half Cube, Full Cube, Large Cube |
| Refrigerant | R290 |
| Water Pressure | 20 psi - 100 psi |
| Water Inlet Size | 1/2 Inches |
| Water Usage | 14.8 gal per 100 Lbs. |
| Voltage | 115 V |
| Hertz | 60 Hz |
| Phase | 1 Ph |
| Amperage | 15 Amps |

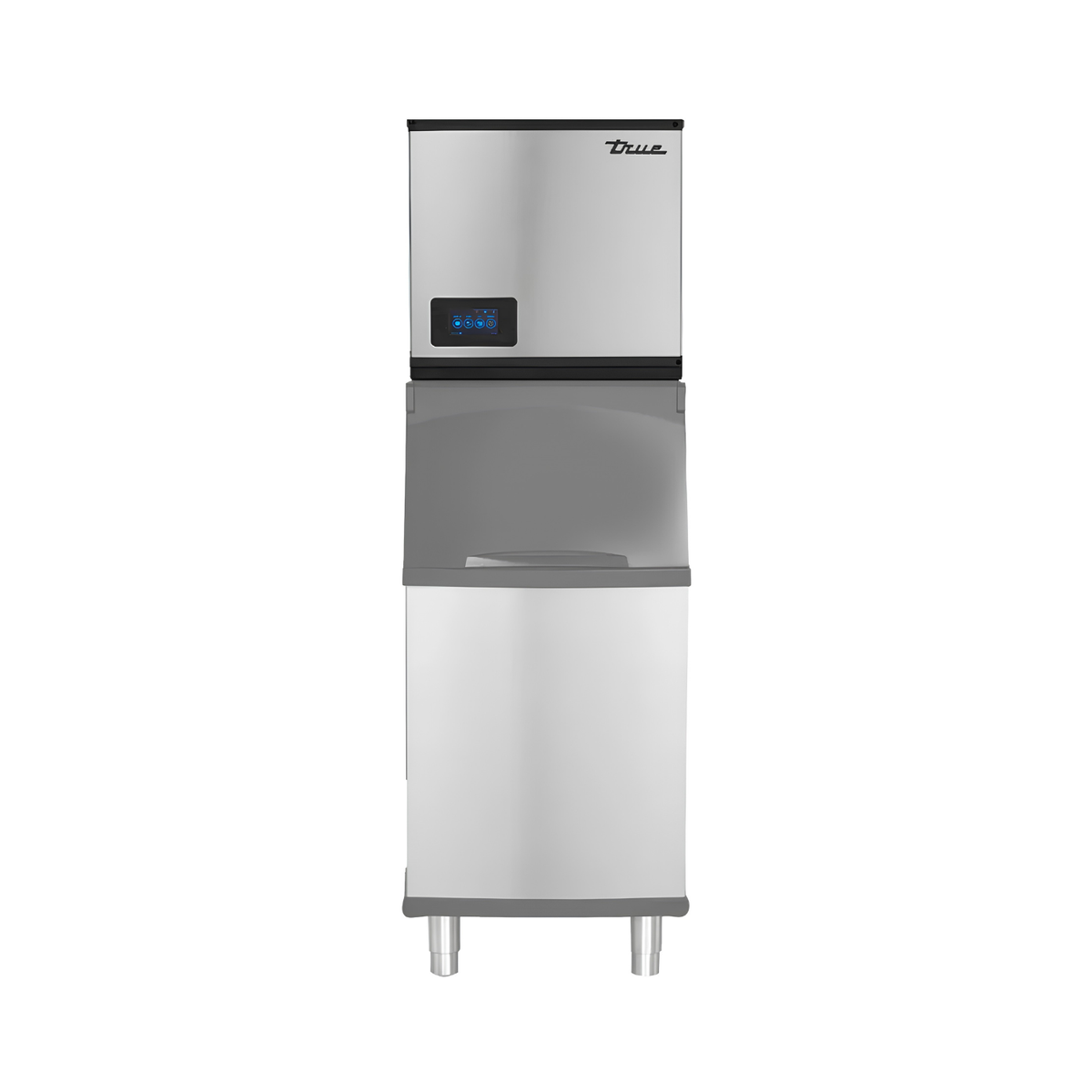

| Compatibility | TIB-422 Ice Storage Bin |
| Installation Type | Free-standing |
| Material | Stainless Steel |
Warranty
Product Specifications
| Model | TCIM-422 |
| Length | 22 Inches |
| Width | 24 Inches |
| Height | 22 Inches |
| 24 Hour Ice Yield | 443 Lbs. |
| Ice Types | Half Cube, Full Cube, Large Cube |
| Refrigerant | R290 |
| Water Pressure | 20 psi - 100 psi |
| Water Inlet Size | 1/2 Inches |
| Water Usage | 14.8 gal per 100 Lbs. |
| Voltage | 115 V |
| Hertz | 60 Hz |
| Phase | 1 Ph |
| Amperage | 15 Amps |
| Compatibility | TIB-422 Ice Storage Bin |
| Installation Type | Free-standing |
| Material | Stainless Steel |
Product Specification Sheets
